Practical SQL project (mavenmovies)

Photo by John Schnobrich on Unsplash

With further pressure to shift everything to digital this 2021, companies are left with no option but to adapt and transform. This also means a lot of data being continuously created and needed to be managed. Even for non-tech firms, SQL has been commonly used as teams start to move away from the traditional spreadsheets. In this post, I will share sample outputs from a recent online course that I have taken (Maven Analytics’ MySQL for Data Analysis). Using the mavenmovies project, we will see how SQL is being applied in a practical business set-up, as well as what requirements should be presented to your stakeholders.

The basic deliverable for analysts using SQL in their daily tasks would be the extracted tables from a large datalake. However, while this is the main output requested, it would be helpful to prepare your supporting materials as some stakeholders may use it as reference. It would be ideal to present the flow on how multiple tables were connected, the SQL syntax used to filter the data with clear documentation of its business request or context, and the extracted tables.

Entity Relationship Diagram

Providing an ERD or a Entity Relationship Diagram to your end users will be helpful for them to visualize how objects or tables in your database are related to one another. It also reflects the cardinality between your tables which will be useful in planning your joins or lookup tables. You may refer to this post from tushar0618 on how to create an ERD from MySQL.

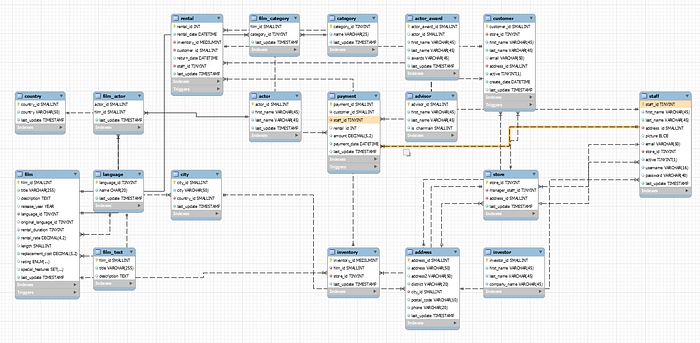

Sample ERD for mavenmovies project. Click to see the full size version.

Business Case and SQL Syntax

While your end users will focus on the already extracted tables, it would be a good reference for them and a good practice for you as a data analyst to keep a clean documentation of the syntax and the business case/situation used. A well-kept documentation will also be helpful in case you need to make changes or revisit the process in the future. Moreover, it will be a good reference for your colleague if ever they will need to take over the project.

Mid-course Project

Scenario 1.1: Sending a mailer to all your staff members to notify regarding a management change. In this case, you would need to pull a list of the first name, last name, and email of each customers.

SELECT first_name, last_name, email, store_id
FROM staff;

Scenario 1.2: Conducting an inventory total count of items at each store.

SELECT
 store_id,
 COUNT(inventory_id) AS count_of_inventory
FROM inventory
GROUP BY store_id

Scenario 1.3: For holidays, management would like to provide a small gift to all active customers. Pull the total count of all active customers for each store.

SELECT
 store_id,
 COUNT(customer_id) AS active_customers
FROM customer
WHERE active = 1
GROUP BY store_id

Scenario 1.4: In line with a data breach checking, provide the count of all customer email addresses stored in the database.

SELECT
 COUNT(email) AS emails
 FROM customer

Scenario 1.5: To identify if the your store can serve different audiences, provide the count of unique titles in the inventory at each store and provide the count of unique categories of films provided.

SELECT
 store_id,
 COUNT(DISTINCT film_id) AS count_unique_title
FROM inventory
GROUP BY store_id;
SELECT
 COUNT(DISTINCT name) AS count_unique_categories
FROM category;

Scenario 1.6: Understand the replacement cost of your film — Identify replacement costs for films that are 1) least expensive to replace, 2) most expensive to replace, and 3) the average replacement cost of all the films in store.

SELECT
 MIN(replacement_cost) AS least_exp_to_replace,
 MAX(replacement_cost) AS most_exp_to_replace,
 AVG(replacement_cost) AS avg_of_all_films
FROM film;

Scenario 1.7: When monitoring current payment system to prevent staff fraud, it would be useful to identify the what is the average payment being process as well as the maximum payment processed so far.

SELECT
 AVG(amount) AS avg_payment,
 MAX(amount) AS max_payment
FROM payment;

Scenario 1.8: When targeting your future customers, you may want to learn more about your current customers and their rental behaviors. Provide a list of all customer ids and count of rentals to-date — sorted from highest volume customers on top.

SELECT customer_id, COUNT(rental_id) AS num_of_times_rented
FROM rental
GROUP BY customer_id
ORDER BY num_of_times_rented DESC;

Useful Exercises

Extra: Provide a granular view of our inventory. (Sample exercise on Inner Join)

SELECT
 film.film_id,
 film.title,
 film.description,
 inventory.store_id,
 inventory.inventory_id
FROM film
 INNER JOIN inventory
 ON film.film_id = inventory.film_id;

Extra: Identify how many renowned actors are associated with each title. (Sample exercise on Left Join)

SELECT film.title, COUNT(film_actor.actor_id) AS number_of_actors
FROM film
LEFT JOIN film_actor
 ON film.film_id = film_actor.film_id
GROUP BY film.title;

Extra: To easily assist customers with preference for specific actors, create a list of all actors with each title they appear it. (Sample exercise on Bridging — this is especially useful when connecting two tables without any common field.)

SELECT
 actor.first_name,
 actor.last_name,
 film.title
FROM actor
INNER JOIN film_actor
 ON actor.actor_id = film_actor.actor_id
INNER JOIN film
 ON film_actor.film_id = film.film_id
ORDER BY last_name, first_name

Extra: With the surge of new customers in Store 2, create a quick reference of list of distinct titles and their descriptions available in inventory at store 2 to provide easy information about titles.

SELECT DISTINCT
 film.title, film.description
FROM film
INNER JOIN inventory
ON film.film_id = inventory.film_id
 AND store_id = 2

Extra: List of all staff and advisor names, including a column to note whether they are a staff member or an advisor. (Sample exercise using Union)

SELECT
 ‘advisor’ AS type,
 first_name,
 last_name
FROM advisor
UNION
SELECT
 ‘staff’ AS type,
 first_name,
 last_name
FROM staff

Final Project

Scenario 2.1: List down the managers’ names at each store with the full address of each property (street, district, city, country)

SELECT
   staff.first_name,
   staff.last_name,
   address.address,
   address.district,
   city.city,
   country.country
FROM staff
INNER JOIN store ON staff.store_id = store.store_id
INNER JOIN address ON store.address_id = address.address_id
INNER JOIN city ON address.city_id = city.city_id
INNER JOIN country ON city.country_id = country.country_id;

Scenario 2.2: Provide list of each inventory item, including store_id, inventory_id, title, film’s rating, rental rate, and replacement cost

SELECT
   inventory.inventory_id,
   inventory.store_id,
   film.title,
   film.rating,
   film.rental_rate,
   film.replacement_cost
FROM inventory
LEFT JOIN film
ON inventory.film_id = film.film_id;

Scenario 2.3: Provide summary level overview of your inventory — how many inventory items you have with each rating at each store?

SELECT
   inventory.store_id,
   film.rating,
   COUNT(inventory.inventory_id) AS inventory_count
FROM inventory
LEFT JOIN film ON inventory.film_id = film.film_id
GROUP BY film.rating, inventory.store_id;

Scenario 2.4: Extract a table containing the number of films, average replacement cost, and total replacement cost — sliced by store and film category.

SELECT
 store_id,
 name AS category,
 COUNT(film.film_id) AS count_film,
 AVG(replacement_cost) AS ave_rep_cost,
 SUM(replacement_cost) AS total_rep_cost
FROM film
LEFT JOIN inventory ON film.film_id = inventory.film_id
LEFT JOIN film_category ON inventory.film_id = film_category.film_id
LEFT JOIN category ON film_category.category_id = category.category_id
GROUP BY store_id, name
ORDER BY total_rep_cost DESC;

Scenario 2.5: List of all customer names, which store they go to, active or inactive, full address (street address, city, and country)

SELECT
   first_name,
   last_name,
   customer.store_id,
   active,
   address,
   city,
   country
FROM customer
LEFT JOIN address ON customer.address_id = address.address_id
LEFT JOIN city ON address.city_id = city.city_id
LEFT JOIN country ON city.country_id = country.country_id;

Scenario 2.6: List of customer names, total lifetime rentals, sum of all payments collected — order on the total lifetime value, most valuable customers on top

SELECT
   first_name,
   last_name,
   COUNT(rental.rental_id) AS total_lifetime_rental,
   SUM(payment.amount) AS total_payments_collected
FROM customer
LEFT JOIN rental ON customer.customer_id = rental.customer_id
LEFT JOIN payment ON rental.rental_id = payment.rental_id
GROUP BY first_name, last_name
ORDER BY total_payments_collected DESC;

Scenario 2.7: List of advisor and investor names in one table. Indicate whether they are an investor or an advisor. If they are an investor, include the company they work with.

SELECT
   ‘advisor’ AS type,
   advisor.first_name,
   advisor.last_name,
   NULL AS company_name_if_investor
FROM advisor
UNION ALL
SELECT
   ‘investor’ AS type,
   investor.first_name,
   investor.last_name,
   company_name
FROM investor;

Scenario 2.8: Determine the percentage of actors we have with 3 awards, 2 awards, and only 1 award. Maximize the combined use of CASE and GROUP BY to replicate an Excel-style PivotTable.

SELECT
  CASE
   WHEN actor_award.awards = ‘Emmy, Oscar, Tony ‘ THEN ‘3 awards’
   WHEN actor_award.awards IN (‘Emmy, Oscar’, ‘Emmy, Tony’, ‘Oscar, Tony’) THEN ‘2 awards’
   ELSE ‘1 award’
   END AS num_of_awards,
   AVG(CASE WHEN actor_award.actor_id IS NULL THEN 0 ELSE 1 END) AS pct_w_one_film
FROM actor_award
GROUP BY
  CASE
   WHEN actor_award.awards = ‘Emmy, Oscar, Tony ‘ THEN ‘3 awards’
   WHEN actor_award.awards IN (‘Emmy, Oscar’, ‘Emmy, Tony’, ‘Oscar, Tony’) THEN ‘2 awards’
   ELSE ‘1 award’
END;

If you enjoyed reading this quick project and would like to learn yourself, check out Maven Analytics at https://www.mavenanalytics.io/ or you may look them up in Udemy. Feel free to reach out to me via Twitter or LinkedIn should you have any questions. I’ll be more than happy to hear about your learning journey!
